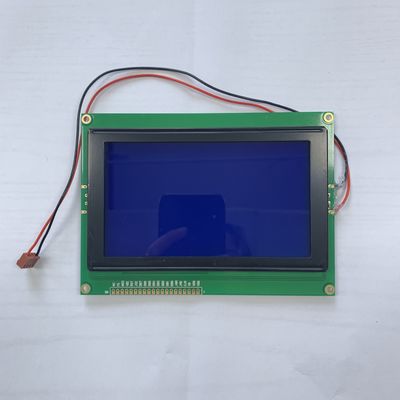

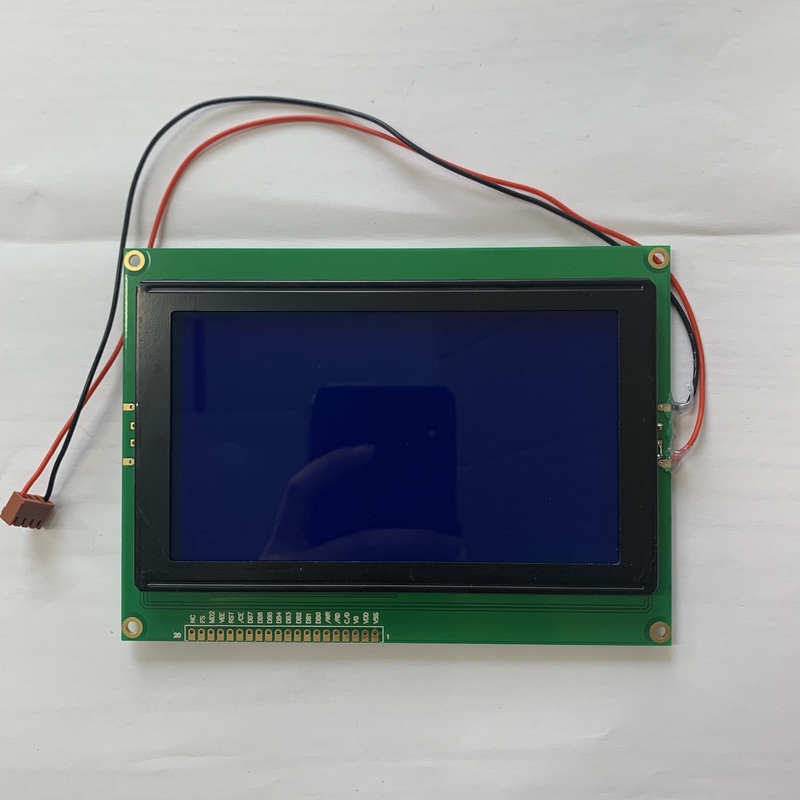

RYP240128A-2-B 2.4 Inch Blue STN LCD Display Module 240x128 Dots White Side Backlight RA6963 Controller 20Pin
Szczegóły Produktu:
| Miejsce pochodzenia: | CHINY |
| Nazwa handlowa: | Royal Display or ODM/OEM |
| Orzecznictwo: | SGS, ROHS |
| Numer modelu: | RYP240128A-2-B |
Zapłata:
| Minimalne zamówienie: | Zbywalny |
|---|---|
| Cena: | negocjowalne |
| Szczegóły pakowania: | Kartony, Capboard, EPE, taca blister. |
| Czas dostawy: | 15-25 dni roboczych |
| Zasady płatności: | L/C, D/A, D/P, T/T, Western Union, Moneygram |
| Możliwość Supply: | 300 tys. szt./miesiąc |
|
Szczegóły informacji |
|||
| Model: | RYP240128A-2-B | Typ wyświetlania: | STN, negatywny, transmisyjny |
|---|---|---|---|
| Rezolucja: | 240 (h) x 128 (v) kropki | obszar wyświetlania: | 114,0 (l) x 64,0 (w) mm |
| Rozmiar kropki: | 0,40 (w) x 0,40 (h) mm | Pitch kropki: | 0,45 (w) x 0,45 (h) mm |
| Podkreślić: | 2.4 inch STN LCD display module,240x128 dots LCD with backlight,RA6963 controller LCD module |
||
opis produktu
RYP240128A-2-B 2.4 Inch Blue STN LCD Display Module 240x128 Dots White Side Backlight RA6963 Controller 20Pin
The famous brands display we have
BOE: Large-scale production, AMOLED, all-size dominance. You could get BOE LCD Modules from us, or customize display here using BOE glass.
AUO: High-quality TFT displays, perfect for many automotive and industrial scenarios. You could share product drawing or part number with us, we will check for lead time and quotation for you.
Innolux: Both glass only or original displays are available here.
Tianma: Provide abundant solutions for industrial and custom displays.
Waveshare: It's embeded solutions integrator/ reseller.
E-paper displays: E-ink, Good display, DKE or other e-paper display brands.
If you are looking for more cost-effective or some products that are EOL, you could ask for recommendations, we will send you quotation and lead time based on your requirements.
Product Description
| Item | Description |
| Product Name | RYP240128A-2-B 2.4 Inch Blue STN LCD |
| Model | RYP240128A-2-B |
| Display Type | STN, Negative, Transmissive |
| Resolution | 240 (H) x 128 (V) Dots |
| Viewing Area | 114.0 (L) x 64.0 (W) mm |
| Dot Size | 0.40 (W) x 0.40 (H) mm |
| Dot Pitch | 0.45 (W) x 0.45 (H) mm |
| Outline Dimension | 144.0 (L) x 104.0 (W) x 15.0 (T) mm |
| Drive Duty/Bias | 1/128 Duty, 1/16 Bias |
| Viewing Direction | 6 o'clock |
| Controller IC | RA6963 |
| Interface | 8-bit Parallel MPU Interface |
| Backlight | White Side LED |
Our Advantages
Over 10-year expert in LCD modules, 20,000m² own factory; 12-month product warranty
OEM/ODM and customization services available, Professional R&D team and overseas sales team
100% inspection before shipment; fast delivery time; Items carry RoHS, CE and SGS marks
Products widely used in instruments and handheld devices, and the medical and automotive industries
Application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
FAQs
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
Product Overview

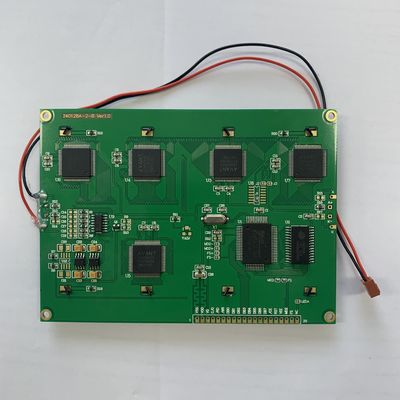

The 240128A-2-B is a classic 2.4-inch monochrome STN LCD module featuring a blue background with white characters (negative, transmissive) display mode with a resolution of 240x128 dots. The module integrates the RA6963 (or equivalent) graphics controller, providing powerful text and graphics display capabilities, and includes a white side-LED backlight. Its standard 8-bit MPU parallel interface makes it easy to connect with various microcontrollers, making it ideal for industrial control, instrumentation, medical equipment, and other fields requiring highly reliable monochrome displays.
Features
Broad selection of off the shelf products
Sunlight readable options available
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Customizable FPC cables, LED backlights, and bezels
